Leave the measurements to us…

Our company has a portable CMM measuring device that allows you to measure large products and equipment directly in your company. If you are interested, do not hesitate to contact us. More information about the equipment can be found below.

Metronor SOLO

Description of the measuring device

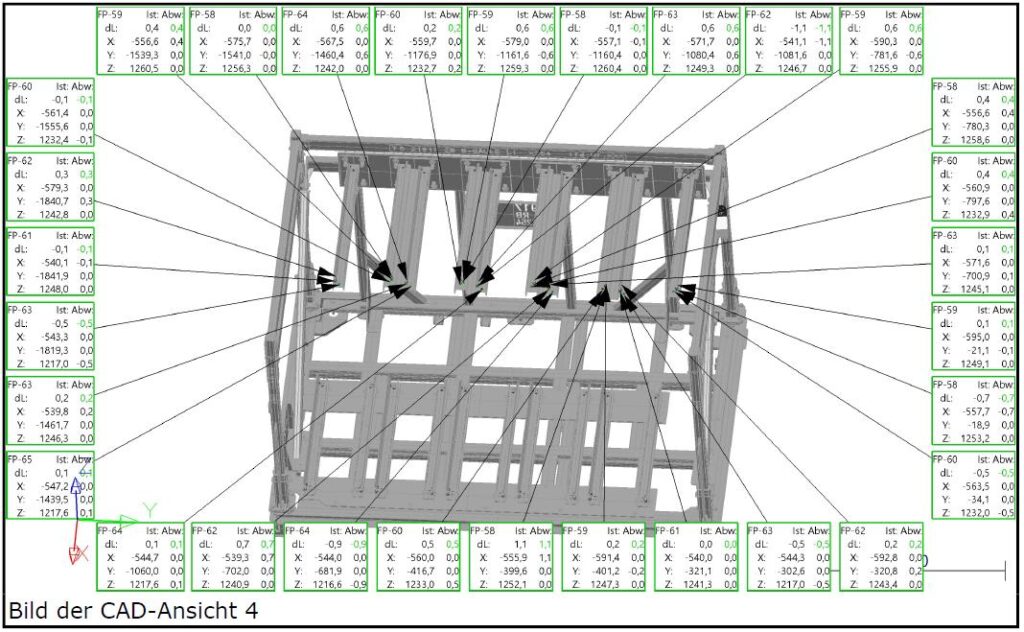

Metronor SOLO is a portable CMM system based on Metronor’s patented principle. It is a coordinate measuring machine that consists of two separate parts (camera and touch light pen). This makes it possible to measure even points that are not visible in the field of view of the camera. The measurement works on the principle of comparing actual dimensions with CAD data.

Using

The Metronor SOLO measuring system can be used in the production and subsequent remeasurement of large welded parts, castings, forgings or various assemblies. Furthermore, various jigs, stops and clamps can be set/adjusted. It is also used in prototype development and inter-operation inspection. Metronor SOLO is also suitable for measuring pipes and tubes.

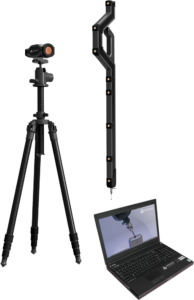

Metronor Solo 3D CMM

Advantages of using the measuring equipment

• Measuring range up to 2000 m³
• easy to use
• fast measurement preparation
• one camera and light pen
• measuring accuracy 0.2 mm

Technical parameters

Accuracy depends on the distance of the camera from the piece to be measured, see table

Distance of the camera from the piece to be measured min. 1.5m, max. 25m Measured maximum volume (product) 2000 m³.
